Sdeley Quail Farming Systems-Precision Solutions for Maximum Productivity
Innovative Equipment · Smart Management
1. Optimized Quail Housing Systems

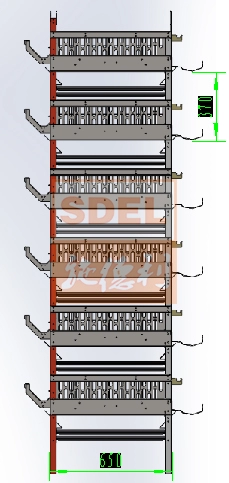

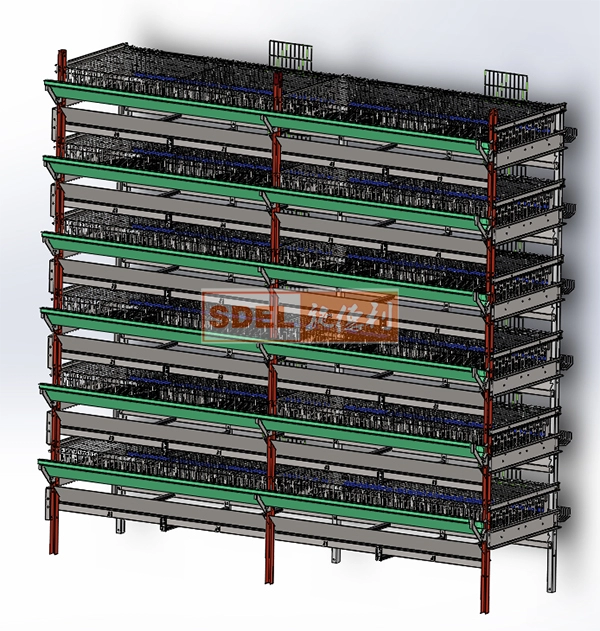

✅ 6-Tier Cage Design
- Space Efficiency: 86.7 cm²/bird density (90 birds/layer)
- Ergonomic Layout: 370mm tier spacing for easy access
- Dimensions: 1.2m(L)×0.65m(W)×0.25m(H) per cage unit
✅ Durable Construction
Anti-corrosion coating (280g/m² zinc layer)
Galvanized steel frames (2mm wire diameter)

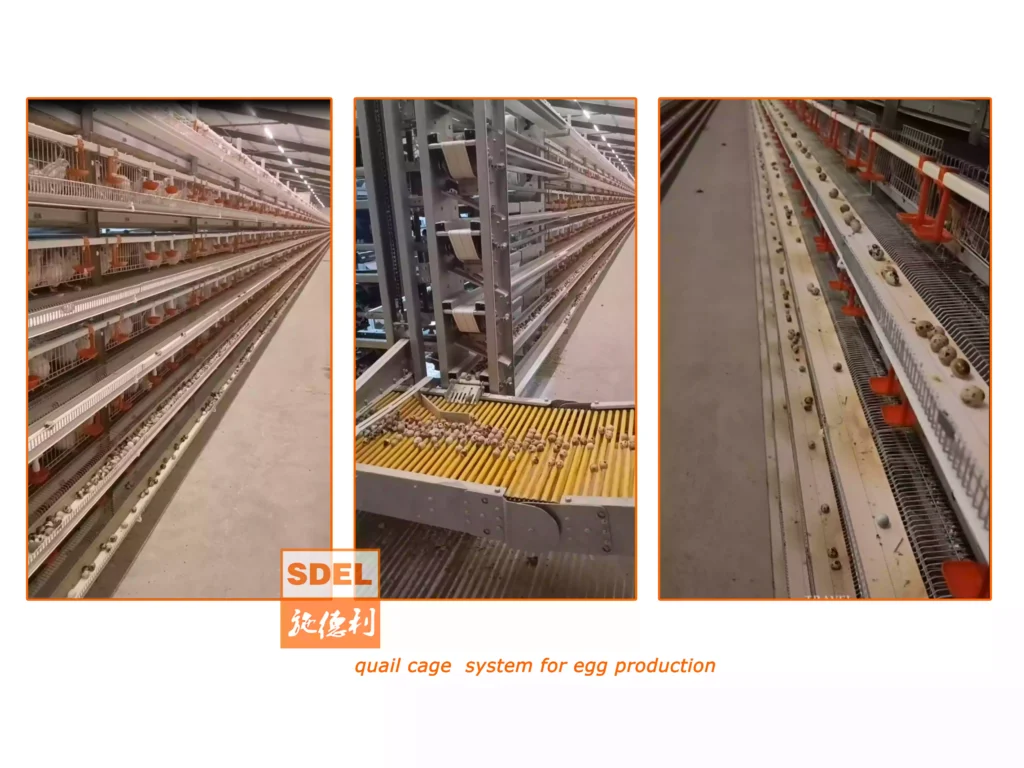

2. Intelligent Automation Packages
| System | Key Features | Performance |
|---|---|---|
| Feeding | Single-side traversing mechanism | 22g/bird/day precision |
| Egg Collection | External belt with soft-cradle design | ≤0.5% breakage rate |
| Manure Removal | Tier-mounted scraper belts (0.3m/s speed) | Daily automated cleaning |
| Climate Control | IoT-enabled sensors + VFD fans/cooling pads | Maintains 20-26°C ±1°C |
3. Farm Planning Services
Sdeley quail Solutions
- 4-Column: 9-10.5m width
- 6-Column: 12.5-13.5m width
- 8-Column: ≈17m width
All designs feature 3.3m clearance height
Capacity Calculator
Example: 90m(L)×13.5m(W) barn → 223,560 birds with Sdeley 6-tier system 4. Biosecurity & Welfare Enhancements
- Noise Reduction: Vibration-dampened cage frames
- Predator Proofing: Reinforced base grids (mesh ≤10mm)
- Stress-Free Lighting: Programmable dawn/dusk simulation
5. Why Choose Sdeley?
✔ EU Welfare Compliance: Meets Directive 1999/74/EC
✔ Energy Savings: VFD fans reduce power use by 30%
✔ Remote Monitoring: Real-time app alerts (temperature/feed/egg yield)
Technical Specifications
| Parameter | Standard Model | Premium Model |
|---|---|---|
| Cage Lifespan | 8 years | 12 years |
| Installation Time | 15 days/10,000m² | 10 days/10,000m² |
| Warranty | 2 years | 5 years |
Case Study:China Jiangsu Quail Farm
- Results:
↗ Egg production: +18%
↘ Feed waste: -22%
→ ROI: 14 months
Request Custom Solution▼
#QuailFarming #PoultryTech #FarmAutomation #SdeleySolutions #EggProduction
All systems ISO 9001 & CE certified. Custom configurations available for operations.
